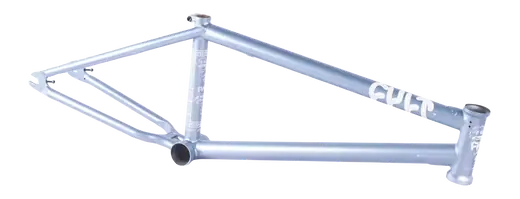

Cult George Ntavoutian Shorty BMX Frame

Description

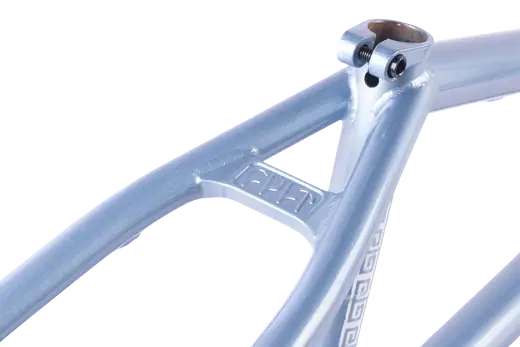

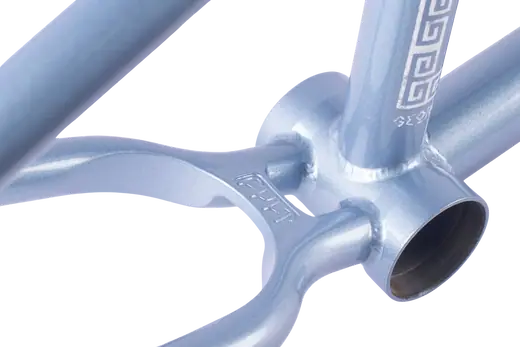

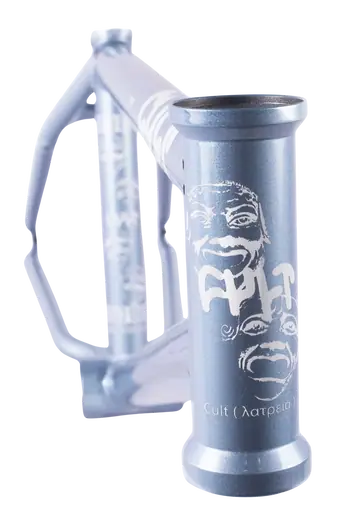

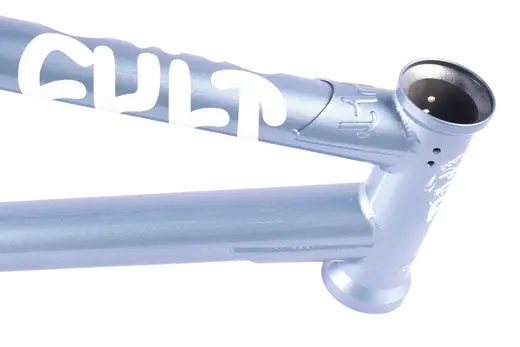

The CULT George Ntavoutian Shorty BMX frame is made of extremely durable 100% chromoly steel and reinforced with top and down tube gussets. Additionally, it is equipped with a 5" integrated headtube, externally machined mid BB shell, investment cast seatpost clamp, seat stay bridge, and tapered seat stays. It also features S-bend chainstays with enough clearance for 2.40" tires and investment cast heat-treated dropouts with a chain tensioner.

With its short and responsive back end, this SHORTY frame is ideal for Park and Street riding. Some of its key specs include a 75.5° head tube angle, 70° seat tube angle, 13"- 13.3" chain stay length, 11.8" bottom bracket height, and an 8.65" standover height. Overall, this frame is designed to provide a dynamic and comfortable ride.

Model specifications

Model	Frame Top Tube
20.5"	20.5"
20.75"	20.75"

Specifications

Bike type:

Freestyle

Frame material:

Chromoly Steel

Frame brakemounts:

Removable brakemounts

Frame standover height:

8.65" (22cm)

Chainstay length (Center):

13.25" (33.6cm)

Chainstay length (Slammed):

13" (33cm)

Dropout size:

14mm

Chain Tensioners:

Yes

Bottom Bracket:

Mid

Seat clamp:

Integrated, 25.4mm

Headset type:

Integrated 1 1/8"

Headtube angle:

75.5°

Headtube length:

127mm
